E-scooter Battery Charger
180W E-Car E-Scooter battery charger
Model No.: SD-180W
Size : 155*90*50cm
Net Weight : 0.9 kg
Housing: Black or sliver aluminium case
Efficiency : ≥ 87% ( full loading )
Input Voltage : 100VAC ~ 240 VAC , 50 HZ / 60HZ
DC output : 24V 5A
Charging mode : 3 stage cc cv floating charging for lead acid batteries
Application : 24V mobility scooter / power wheelchair high power batteries hp8204b
Input plug : EU, US , UK , AU , Italy plug etc ( as your requirement )
Output plug : DC Jack , XLR , JST , Cigar Lighter , Alligator clip etc
SD-180W battery charger Specification :
|
SD-180W Battery Charger Parameter |
||||||||||
|
Input voltage : 100VAC~ 240VAC 50HZ/60HZ |
CC |
CV |
Transition / Cut-off Current |
Net Weight |
Size |
Package |
||||
|
Item No. |
Input voltage |
Lead Acid |
Li-MnO2 |
LiFePO4 |
A |
Lead Acid (A) |
Li(A) |
(kg) |
(mm) |
( pcs/ctn ) |
|
SD-180W |
12V |
14.7V |
16.8V |
14.6V |
8A |
1.6A |
0.4 |
0.9 |
155*90*50 |
12pcs/ctn |
|
7A |
1.4A |
0.35 |
||||||||
|
24V |
29.4V |
29.4V |
29.2V |
5A |
1.0A |
0.25A |
||||
|
36V |
44.1V |
42.0V |
43.8V |
4A |
0.8A |
0.2A |
||||
|
48V |
58.8V |
54.8V |
58.4V |
3A |
0.6A |
0.15A |
||||
|
60V |
73.5V |
67.2V |
73.0V |
1A |
0.2A |
0.05A |
||||
|
2A |
0.4A |
0.1A |
||||||||
|
72V |
88.2V |
84.0V |
87.6V |
1A |
0.2A |
0.05A |
||||
|
2A |
0.4A |
0.1A |
||||||||
|

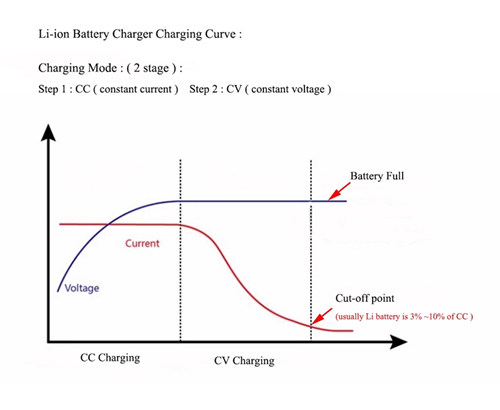

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%. |
||||||||||
Our Advantage :
1. Full automatic transition of cc cv and float / cut-off , Precise limit of voltage & current
2. High efficiency ≥ 90% , high performance , stable and durable
3. Using 3 stage charging mode : cc-cv-floating , charging more intelligent and safety, High saturation and lower calorie.
4. two led indicators show charging situation ( led 1 red mean power on / charging , Led 2 green mean full charged )
5. All products passed CE & Rohs certification
6. Factory wholesale price , 10 years factory production experience in battery charger industry.
7. multi-protection function : protection for short circuit , over voltage, over-temperature, Reverse polarity protections ( Dc output isolated from AC input ) without any damage to the battery,Can enhance batteries lives
8. Aluminium black and silver housing, light weight portable and reliable
